Trueview Wireless Router 4G Mobile SIM Based with Four Antenna, Output 4G/2.4GHz, Plug and Play, Ideal for NVR, DVR, WiFi Camera, All 4G SIM Card Support

Description

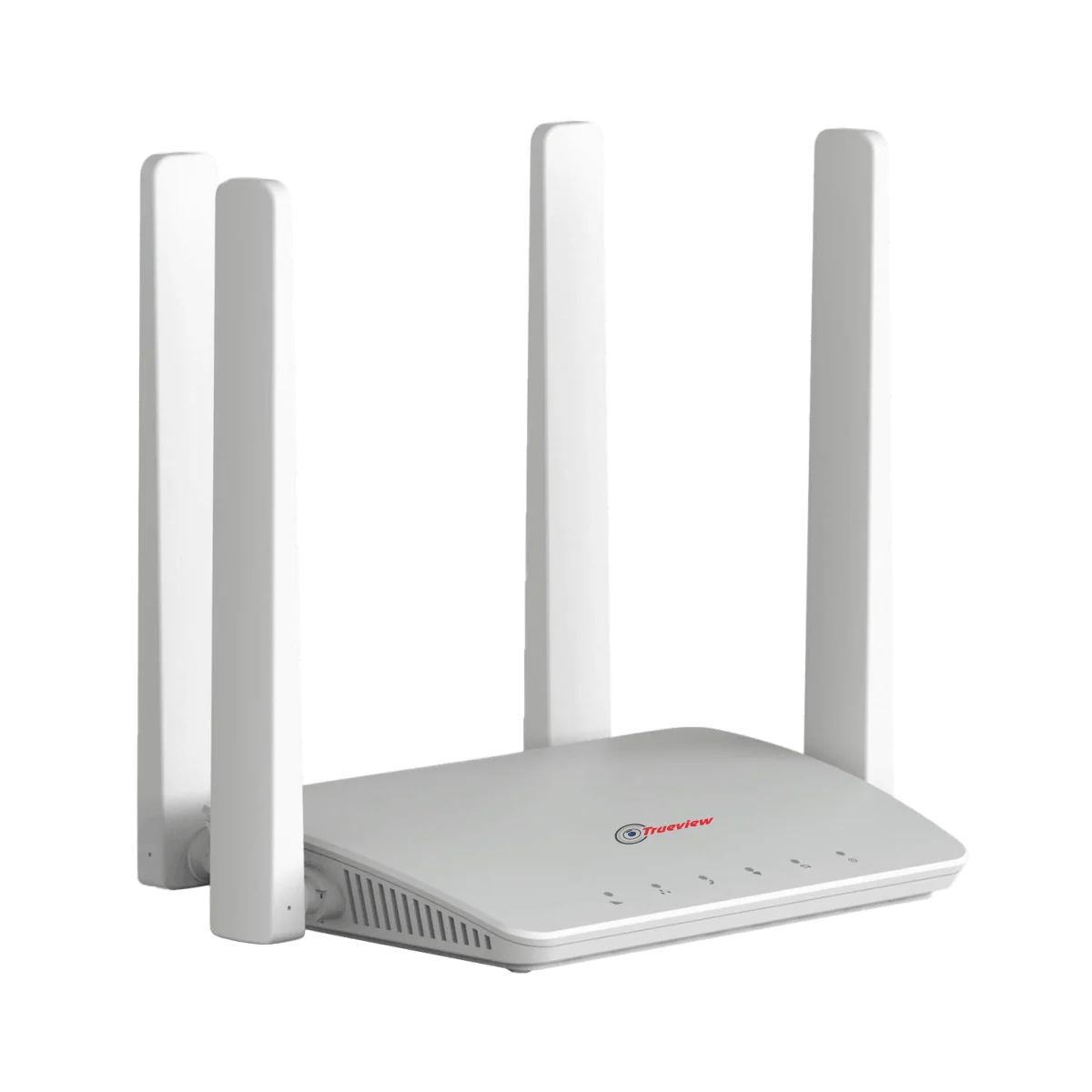

The Trueview Wireless Router 4G Mobile SIM Based with Four Antenna is a versatile, high-performance router designed for seamless internet connectivity in homes, offices, and remote locations. It supports 4G/5G SIM cards, delivering Wi-Fi speeds up to 300 Mbps on the 2.4GHz frequency band, ideal for connecting devices like NVRs, DVRs, WiFi cameras, phones, PCs, and other network-enabled devices. The four external antennas enhance signal strength and provide long-range coverage up to 50 meters, minimizing dead zones and ensuring stable connectivity in larger spaces or multi-storey buildings. The plug-and-play functionality allows easy setup by inserting any 4G SIM card, with no complex configuration required.

The router features Wi-Fi and LAN port connectivity, offering both wireless and wired options for flexible device integration. The intuitive web UI enables easy configuration, allowing users to manage device security, customize settings, and monitor network performance. It is compatible with multiple operating systems, including Windows (7/8/XP/10), Android (10/11), Linux (Ubuntu 15.04+), and iOS, ensuring seamless connectivity across various devices. H.264/H.265 compression support optimizes data transmission for connected CCTV devices. The compact design (150 × 105 × 30 mm, ~320g) allows flexible placement on a desk, shelf, or wall mount. The router is noted for its reliable performance, wide coverage, and ease of use, though connectivity may depend on 4G signal strength, and occasional delays may occur in the web UI or app interface.

Specifications

• Device Type: 4G/5G SIM-Based Wireless Router

• Model: Trueview T18168-AE

• Wireless Speed: Up to 300 Mbps

• Frequency Band: 2.4GHz

• Antenna: 4 External Antennas

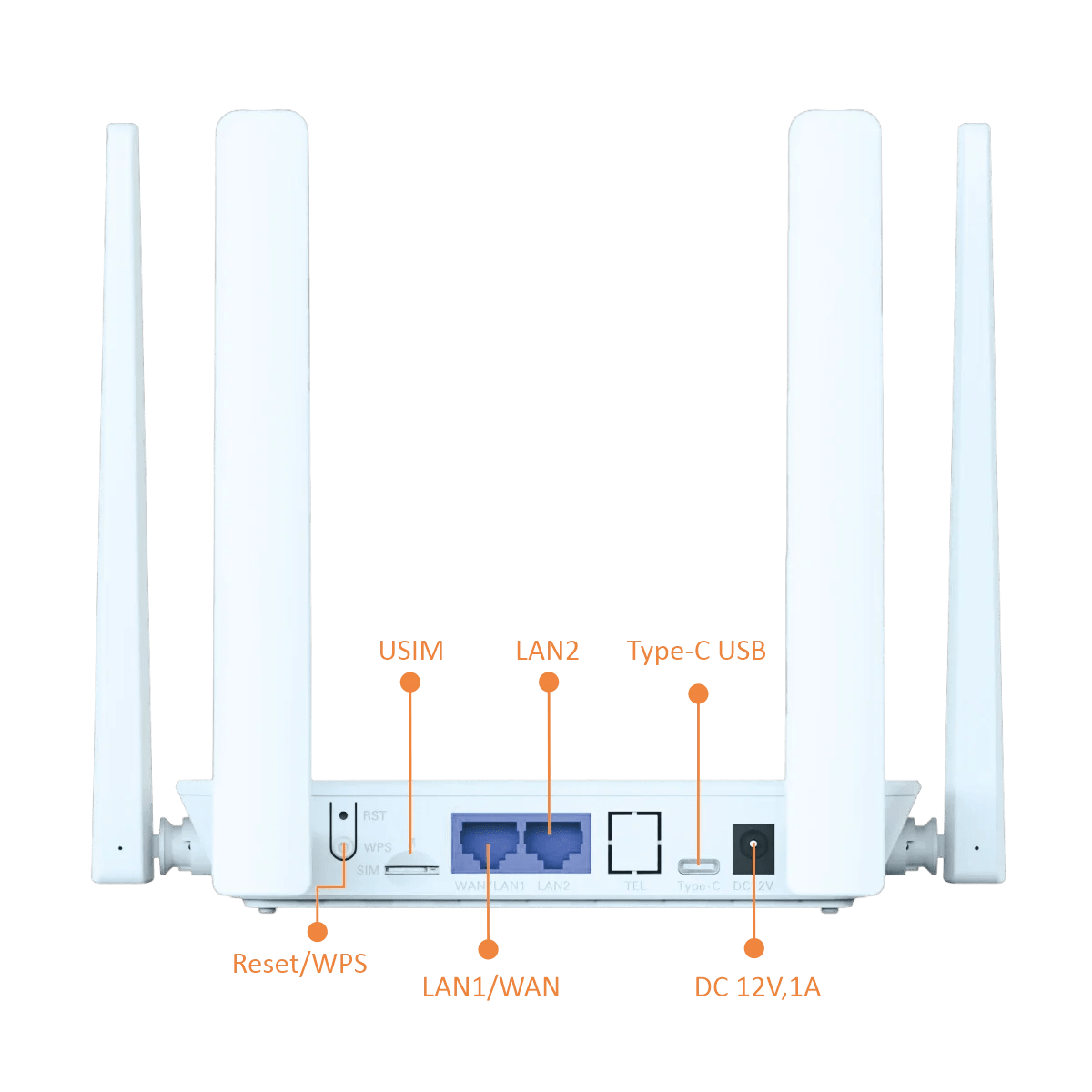

• Connectivity: 4G LTE (SIM Card), Wi-Fi (IEEE 802.11b/g/n, 2.4GHz), 1x LAN Port (RJ45)

• SIM Compatibility: All 4G SIM Cards (JIO, Airtel, Vodafone, Idea, BSNL, etc.), 5G SIM Support

• Range: Up to 50 meters

• Configuration: Web UI for Device Security and Management

• Supported Devices: NVR, DVR, WiFi Cameras, Phones, PCs, Tablets, Smart TVs

• Operating Systems: Windows (7/8/XP/10), Android (10/11), Linux (Ubuntu 15.04+), iOS

• Compression Support: H.264, H.265 (for CCTV device compatibility)

• Power Supply: DC 12V/1A

• Power Consumption: 5W

• Operating Temperature: 0°C to +50°C (32°F to 122°F)

• Operating Humidity: 10%–90% RH (Non-Condensing)

• Material: Plastic Housing

• Mounting Type: Desk, Shelf, or Wall Mount

• Dimensions: 150 × 105 × 30 mm (5.91 × 4.13 × 1.18 in)

• Weight: 320g (11.29 oz)

• Certifications: CE, RoHS (assumed based on industry standards)

• Package Contents: Trueview T18168-AE Router, Power Adapter (12V/1A), User Manual

• Warranty: 2 Years (region-dependent, via authorized resellers)
